Muratec Full Sheet

Automated Cell System

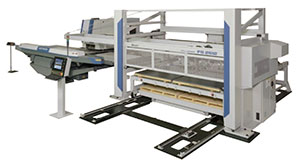

FS Series - FS2512

Muratec's FS Series cell loader is a proven cell system with more than 200 installations worldwide.

This economical load/unload system can increase the production of a single stand-alone punch press by 100%. The raw material table and finished product table can be loaded and unloaded at the front of the system by fork lift truck or an overhead crane. Loading and un-loading on the operator side for maintenance and manual operation.

FS Series cell loaders are popular for their compact design, quieter system operation, multiple-stack operation to cater non-standard parts and has the latest technology FMS dedicated controller.


FS2512 / FS3015

Features

Space saving compact design
Increased productivity through reduced loading cycle time
Quieter system operation
Manual blank sheet loading operation is possible
NC-type loader unit control & scheduler

FS2512

FS2512

FS3015

Sheet Size
(Y x X)

MAX.

1250 mm x 2500 mm

1525 mm x 3050 mm

MIN.

300 mm x 750 mm

Blank Sheet Thickness

0.6 to 4.5 mm

In Cycle Time

18 sec.

23 sec.

FS2512 / 3015

Applicable machine model : M3048TG, M2548TS, M2558TS, M2048TS, M2558HL



Main Specifications:

Material Thickness Max. Stack Height Maximum Sheet Size (X x Y) Minimum Sheet Size (X x Y) Stack Weight
0.6mm ~ 4.5mm 260mm 2500 x 1250mm 750 x 300mm 2 tons
