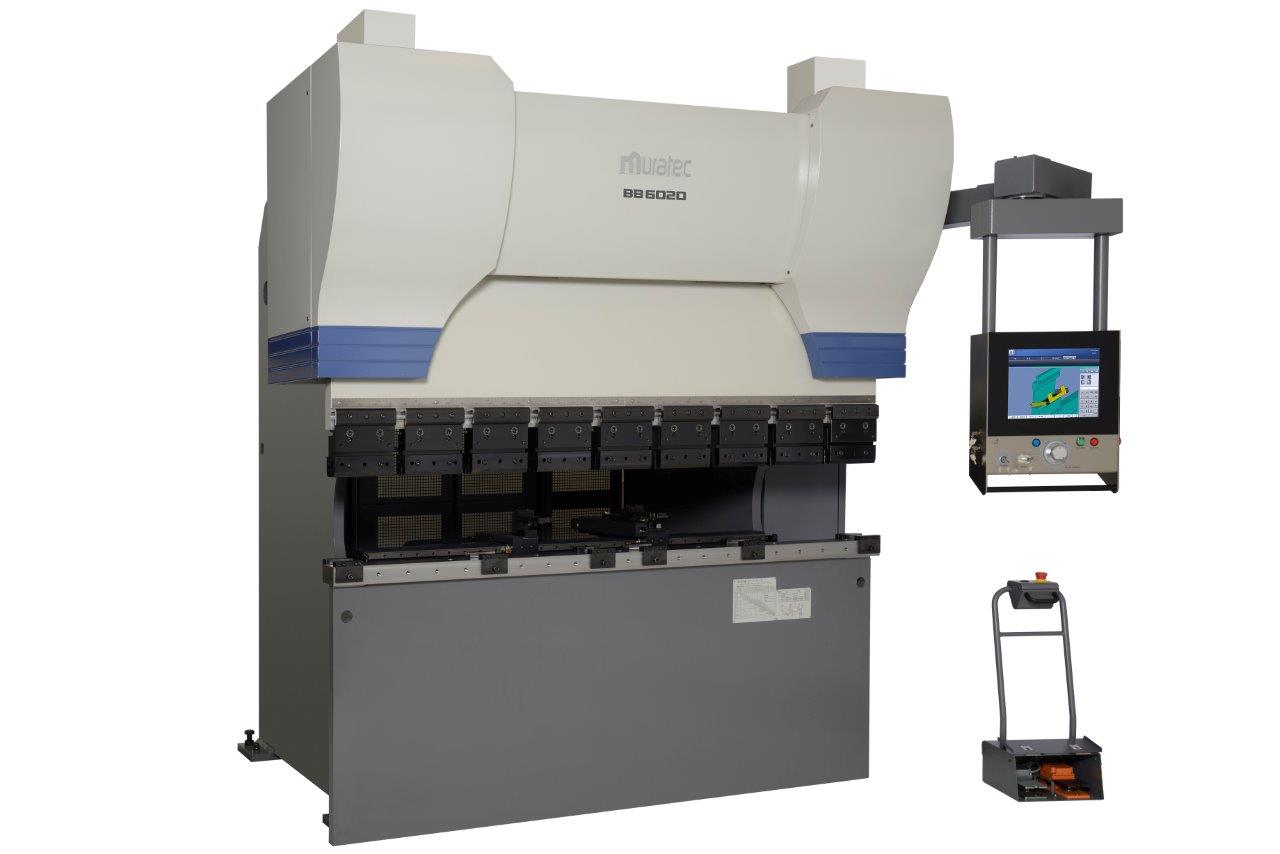

Muratec Ball Screw Press Brake BB6020

Muratec Ball Screw Press Brake BB6020

Muratec Ball Screw Press Brake BB series is driven by AC servo motor and ball screw mechanism. It has reached high productivity with a fast ram and back gauge plus extremely consistent repeat accuracy.

Ball screw drive

The ram shaft drive enables high-speed movement at 100mm/sec and stable repeatstop accuracy by adopting a ball screw drive mechanism by AC servo motor and ball screw drive. This is a drive method superior in environmental performance including being oilless and noise reduction by the reducer.

High-speed movement by the ball screw drive
Stable high repeating accuracy by the ball screw drive
Environmental performance
(oilless and noise reduction by the reducer)

Drive Ram Mechanism reputation for innovation and Reliability by Design is prevalent




Main Specifications:

Tonnage Bending Length Distance Between Frames Open Height Ram Speed (Down | Bending)
55 Tons 2100mm 1700mm 280 0.95~95mm/mm | 0.2~20mm/min
