HK FL3015 CO2

HK FL3015 CO2

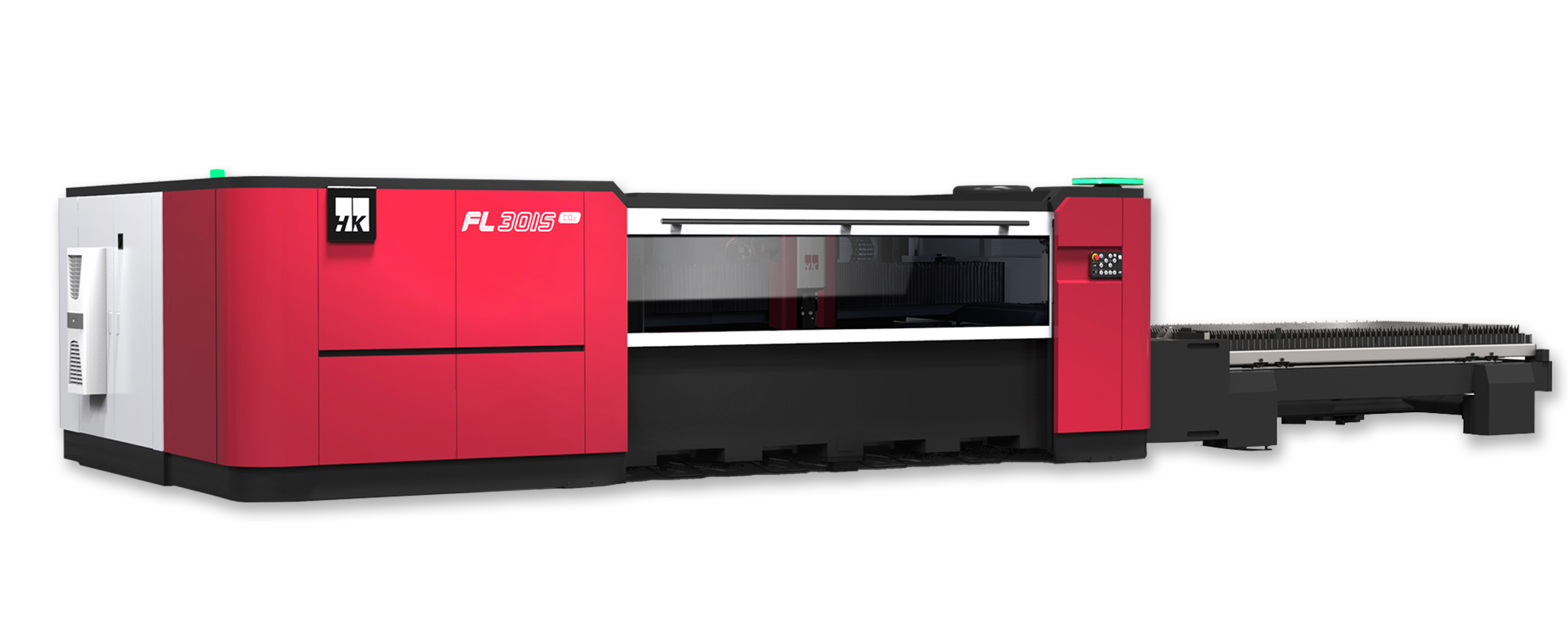

The FL3015 CO₂laser is HK’s proven premium CO₂laser cutting system.
It comes equipped with a wide-open side door structure with optional rotary axis for tube cutting.
It has a dual servo motor gantry with a rack & pinion motion system.

Features


· Wide open door
· Tube cutting (optional)
· Synchronized dual servo motor
· Auto focus controller
· Lens cartridge switching
· Plasma monitoring system saving piercing time and preventing cutting failure
· 15” wide touch screen



S5 Cutting Head

BRC Mirror

Cutting Sample

U-Axis for optional Tube Cutting



Main Specifications:

Data:

Maximum Work Area Maximum Transfer Speed Maximum Cutting Speed Positioning Accuracy Repeatability
3,048mm x 1,524mm 140m/min 25,000mm/min +/- 0.1mm/3,000mm +/- 0.03mm

Cutting Capacity:

Output Mild Steel Stainless Steel (Clean Cut) Aluminium
2.5kW 18 8 8
4.0kW 20 12 10
6.0kW 25 16 15
