HK PL Series

HK Laser and Systems

PL Series

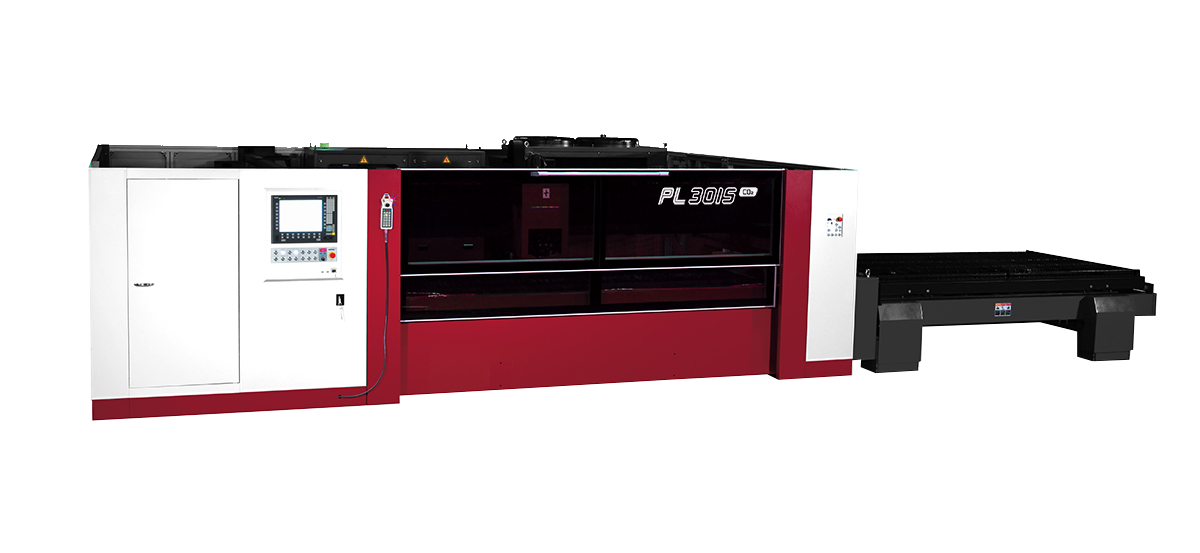

Premium laser cutting machine PL Series


Features


· Wide open door
· Tube cutting (optional)
· Plasma monitoring system saving piercing time and preventing cutting failure
· 15” wide touch screen
· Optimal cutting quality by beam radius control function
· Uniformed quality throughout whole work area by constant beam delivery system
· Auto focus controller
· Lens cartridge switching
· Synchronized dual servo motor


S5 Cutting Head


BRC Mirror


CBDS


U-Axis





      Main Specifications:

      Data:

      Maximum Work Area Maximum Transfer Speed Maximum Cutting Speed Positioning Accuracy Repeatability
      3,048mm x 1,524mm 140m/min 25,000mm/min +/- 0.1mm/3,000mm +/- 0.03mm

      Cutting Capacity:

      Output Mild Steel Stainless Steel (Clean Cut) Aluminium
      2.5kW 18 8 8
      4.0kW 20 12 10
      6.0kW 25 16 15
