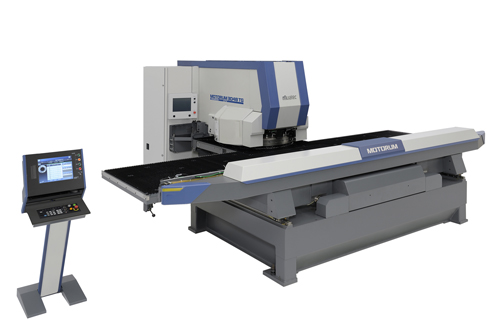

Muratec Motorum Turret Punch Press M3048/58TG

Environment-friendly Design

The Motorum M3048TG has been designed with a combination of speed and power prodcuing a new 30 ton servo ram drive turret punch press. The Motorum M3048TG uses large turrets for greater tool availability coupled with indexable multi-tools for the greatest of flexibility.

The Murata Intelligent HMI control interface provides the ability to enhance machine production time by minimizing setup time required by the operator. On-board guidance is provided for tool changes, turret load monitoring, scheduling, tool maintenance, along with other features that maximize machine production.

Features

  • 510 hits per minute with 125 m/min table traverse speeds
  • 1000 hits per minute nibble capability
  • Powerful new 30 ton Servo Driven Ram
  • Reduces post processes
  • WCell Ready for Muratecs loading systems
  • Powerful new Fanuc 31iP control with Intelligent Control Interface (HMI)
  • Heavy duty turret and tooling
  • Heavy duty two piece frame




Main Specifications:

Punching Capacity Max Sheet Thickness (Mild Steel) Max Sheet Size Max Sheet Size (1 x repo) No of stations
300kN (30.6 tons) 6.35mm 1250/1500mm x 2500mm 1250/1500mm x 5000mm 44/54

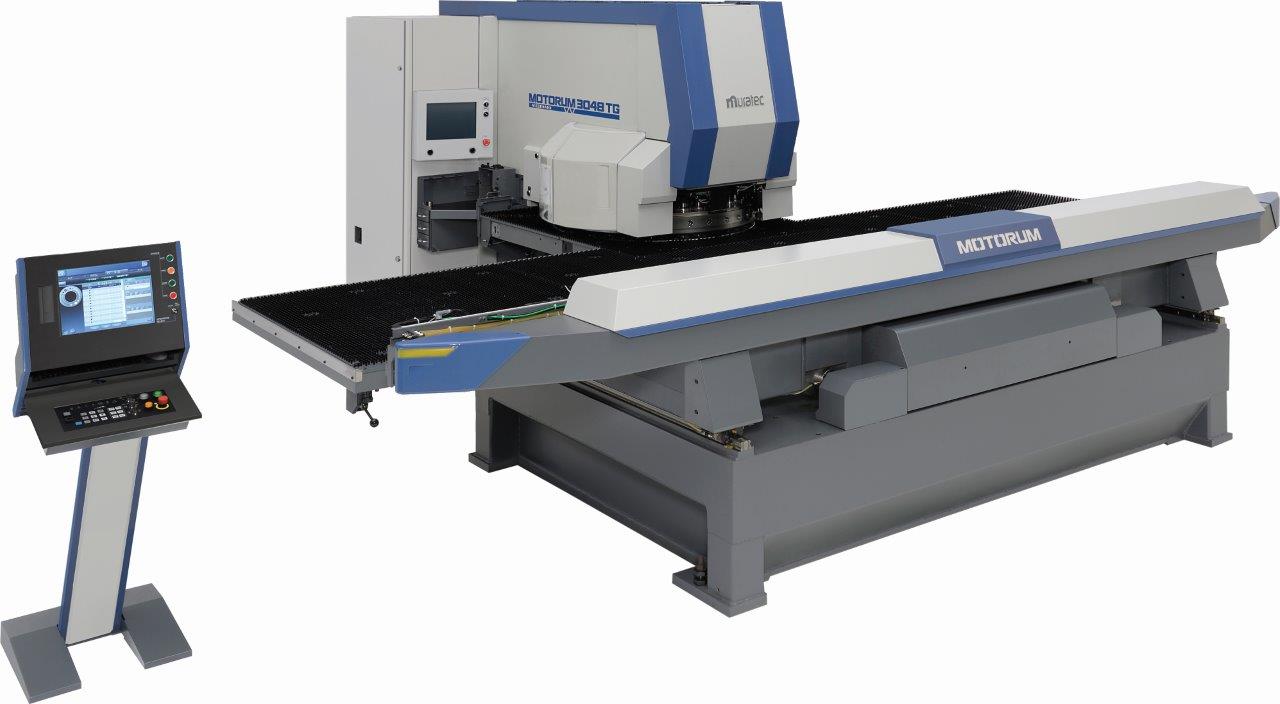

MOTORUM M3048TG / M3058TG

CNC Servo Motor Driven Ram Turret Punch Press

M3048TG / M3058TG

The New 30 Ton Solution
Latest Technology from the Inventor of the Electric Turret Punch Press.
M3048TGMF Eco Machine


    Pyramid Base Design

    Stability at maximum tonnage.


    Muratec “Green” Machine
    Environmentally friendly and power efficient.

    Latest Process Integration Options

    Reduce post processes with the latest machine and tooling technology. Supports tapping, forming, marking, deburring and various automation options.

    Intelligent Control
    New touch screen user interface assists the operator and increases machine productivity.

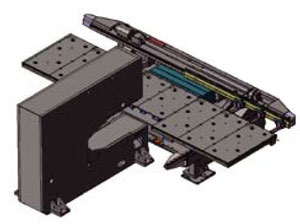

Two Piece Design

Two Piece Design

Muratec’s original “C” frame is designed to separate the frame and table base. Even at maximum tonnage, vibrations are not carried over to the table delivering increased precision and high quality parts.

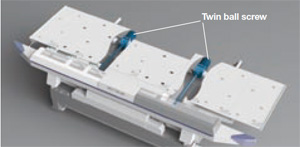

Wide Tabel Base & Y-Axis Twin Ball Screws

A wide frame structure supports the 2.5M X-axis stroke table. Twin Y-axis balls screws are controlled by synchronized servo motors. Both have been engineered to realize improvements in stability and processing accuracy during high-speed movements.

In-Line Pnch Drive Design

In-Line Punch Drive Design

Driven by Muratec’s goal of constant improvement, the ram servo motor has been designed parallel with the press frame. This provides a compact press frame generating less stress, greater rigidity, improves hole quality and tool life.

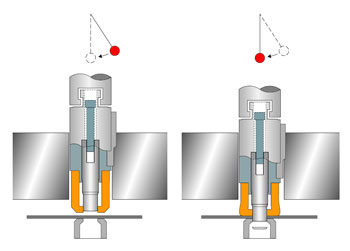

Positive Strip Tooling Is A Proven Wiedemann Design

Positive Strip Tooling Is A Proven Wiedemann Design

Using a mechanical link between the ram and the punch holder provides a positive push and pull motion during the entire punching stroke. The design has been field proven for its high strength, precision and simplicity of tooling. It provides the most economical tooling solution in the industry. Also available is high end guided tooling with steel strippers providing precision production and longer tool life.

Forming

Optimum control of RAM speed leads to fast and accurate forming of the highest quality, with work very minimal distortion.

Retractable forming die function (Option)

Upward forming tool dies are retracted out of the way of the work sheet movements when forming is not in operation to avoid interference of forming die with workpieces or workholders. This allows free fast movement of the sheet without any restrictions and improves quality.

Downward extrusion protection (Option)

Forming with thrust from below does not lift the work, allowing extrusion and other high-precision forming processes.

Deburring Operation

    One tooling. All round deburring operation (Option)

    Deburring and pinching operation using the ball bearing manufactured originally by Muratec. Two bearings from top and bottom sides removes the burr of the edge both sides, upper and lower, of the punched parts simultaneously by pinching the edge of the punched sheet along with the path.

Deburring operation

Indexable Varitool

Indexable Varitool

The Indexable Varitool (Option) comes in a 12 tool configuration and allows all tools in the Varitool to be indexed 360°. Each tool is programmed like a separate auto index station. Any X or Y offset is
automatically compensated for by the control.

Other Options

Tapping Units

Tooling

Model

M3048TG

M3058TG

Punching capacity

300 kN
30.6 Metric Tons
33.6 US Tons

Maximum sheet thickness

6.35 mm [0.250"]

Maximum sheet size punchable
without repositioning (Y x X)

1250 mm x 2500 mm
[49.21" x 98.43"]

1525 mm x 2500 mm
[60.04" x 98.43"]

Hit rate

25 mm pitch
7 mm stroke

510 hpm

0.5 mm pitch
1.4 mm stroke

1000 hpm

Punching accuracy

+/- 0.1 mm [+/- 0.004"]
