Wiedemann Style Punch Press Tools.


We manufacture 114 and 112 Wiedemann style tooling here in our facility in Chandlers Ford, Hampshire. catering for the Muratec customers tooling requirements of standard and special tooling made from high speed steel.

We also stock all parts concerned with Muratec Turret Punch Press Tools to include.

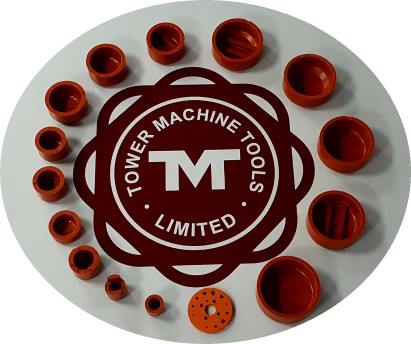

  • Urethane Strippers
  • Punch Holders
  • Die Holders
  • Bolts
  • Shims
  • Springs




Tower''s product quality is certified to comply with ISO 9001:2008

Complete manufacturing - except for hardening - from billet to finished tool, is carried out at our Chandlers Ford site.

Our tool making facilities employ CNC turning, milling, grinding and wire/spark erosion.

Approximately 30,000 part-finished blanks are held in stock at any one time, many of these are 90% finished and require only the final grinding and inspection for completion.

Most standard tooling requests can be satisfied within 24-48 hours.

Tower Tooling Offers The Following

  • Only the finest quality tool steels used in manufacture
  • Tools offered in D2 for normal punching applications
  • Tools offered in M2 for high speed, stainless steel & heavy gauge punching applications
  • All styles of Muratec Wiedemann tooling supplied - 112, 114, Vulcan & Multitool
  • Full design service available for special applications and manufactured to request
  • Economic and simple construction - The configuration employs just six components - punch holder, punch, setscrew, urethane stripper, die holder and die

STANDARD TOOLING

Diameter
Rectangle
Round End
Single D
Double D

SPECIAL TOOLING

Keyhole/Keyway
Hexagon/Octagon
Triangle
2, 3 or 4 Way Radius
Banana
Beading
Embossing
Stamping
Knockout
Louvre
Bridge

Special tooling (158kb)

MULTIITOOL

Image 1

A mini-turret within a turret.

Dramatically boosts the turret capacity. Once tools are loaded into the holder, they remain in the turret, thus reducing set-up time.

Available in C2, C3 and Z Type Styles.

Please indicate machine and serial number when ordering.

VULCAN

Image 1

This tool has built in springs to provide very high stripping force. Designed to support the extremely high speed of new machines, the Vulcan tool works in combination with the Punch-in and Pull-out of the ram to achieve the strong pulling action for which Muratec machines are renowned.
