ISO REGISTRATION
Tower is delighted to announce it has recently been audited and has maintained the ISO 9001:2008 standard for the Supply, Installation and Servicing of Machine Tools including
the Manufacture of Punch Press Tools and Associated Services.
ISO 9001:2008 - Certificate Number A12806
Achieved as part of Tower Machine
Tools Ltd ongoing commitment to our customers to provide the very best
in CNC Turret Punch Presses, Press Brakes and Shears along with the
highest quality Wiedemann tooling and service support.
Registration Certificates (136kb)
MAGNUM FORCE
The MAGNUM 5000 has returned to the UK sales market.
With it''s 45 Ton capacity it will punch up to 10 mm sheet and can
handle a sheet 1525 x 1830mm without reposition. Previously popular
because of it''s large turret and tool size capacity, it will take up to
a 140 x 5mm slitting tool.
The MAGNUM 5000 is Muratec''s symbol of pioneering and long
established technological excellence and high reliability in CNC turret
punch press design and manufacturing.
High rigidity and precision of the machine are fully complemented by
the proven Wiedemann style punching. Low cost tooling, easy-to-use
conversational type programming control and such other unique and
exceptional features have resulted in these machines becoming favourites
of users world-wide meeting all their requirements.
25 TON and a large table to boot !!
The Motorum range has just got better for the UK market.
MOTORUM 2558: 25 TON 1525 x 2500 WITHOUT REPOSITION
Features:
- Up to 800 hits per minute
- 100 metres per minute linear table speed in the X axis
- 75 metres per minute linear table speed in the Y axis
- 40 rpm High speed turret
- 180 rpm high speed auto index with 76mm capacity
- Quick change punch & die holder system
- Programmable ram stroke for each tool
- Controllable ram speed to minimise impact and noise
AC MOTOR RAM DRIVE TECHNOLOGY
The MURATEC ram drive technology still incorporates a toggle
mechanism driven by an AC servo motor. This innovative technology has
resulted in achieving higher productivity, an enviromentally friendly
operation, and energy efficient production. A single rotation of the
crank arm gives two punching strokes.
A small force is converted to a large force, reducing generation of
heat by the motor. The ram drive technology gives higher power at the
ram than the motor gernerated power.
POSITIVE PUNCHING
The POSITIVE PUNCH-IN and PULL-OUT
design of the ram, which is mechanically linked to the punch holder
during the punching cycle, guarantees positive punching. This design
has already been field proven for it''s high strength, precision and
simplicity of tooling.
By combining this feature with the newly innovated servo driven ram, the reliability of the machine has been greatly enhanced.
ENERGY CONSERVATION AND LOW RUNNING COST
An environment-friendly eco-machine, the Motorum uses the energy
it needs only at the time of punching, thanks to the servo motor drive
mechanism. By using regenerated energy generated at the time of
braking, running costs are considerably reduced.
ECOLOGY - ECONOMY - EASY TO USE
Looking for a replacement C2500!!

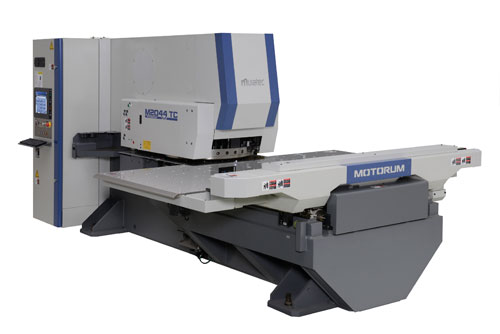

The smaller end of the market is covered with the M2044TC
MOTORUM 2044TC
- Stations- 22/18
- Punching capacity - 20 metric tons
- Hit rate punching (25mm pitch) - 220hpm
- Hit rate nibbling - 600hpm
- Punching accuracy - +/- 0.1mm
- Maximum sheet size (without reposition) - 1250mm x 1250mm
- Maximum sheet size (with reposition) - 1250mm x 2500m
Looking for a replacement C2500!!
The smaller end of the market is covered with the M2044TC It is
designed to meet the sheet metal challenges of today. The rugged design
delivers 20 Tons of punching force, which is sufficient to process
standard fabricating requirements of punching and forming. The baby of
the bunch has been successfully tested for a continuous 100,000 hits in
6mm thick material for full tonnage.
The updated control and new look "talkative" panel mean that the
machine is easier to program manually, and with all the Motorum Servo
Motor Ram technology it is faster still.
The turret design is likened to that of the popular Centrum C2500
with 18/22 station options. With a 1250 x 1250 sheet capacity without
reposition it will cope with all the jobs of the C2500 and fit in a
smaller factory space than the larger 25/45 Ton machines.
